Milling & Drilling
Section
62 machines dedicated to CNC vertical milling, precision drilling, and CNC drilling — delivering tight dimensional accuracy and superior surface finish for automotive and industrial components since 1973.
Precision Shaping & Hole-Making at Scale
Milling and drilling are fundamental material removal processes for shaping and finishing precision components. Pivot Fabrique's Milling & Drilling Section is equipped with 62 dedicated machines — spanning CNC vertical milling centres, conventional vertical milling, and precision drilling machines from 8mm to 13mm capacity — purpose-built for high-volume automotive and industrial production under ISO/TS 16949:2009 quality control.
CNC Vertical Milling
3 CNC vertical milling centres at 500×400mm table — precise multi-axis contouring and face milling with repeatable accuracy.

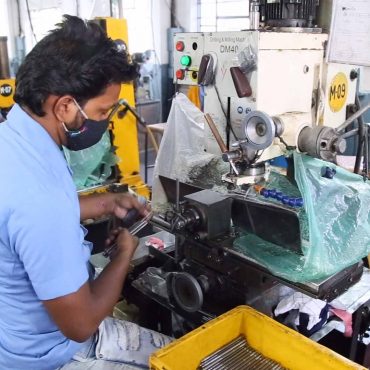

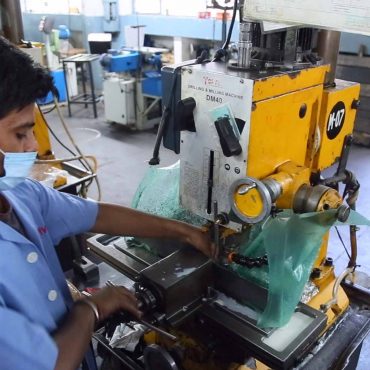

Vertical Milling Fleet
35 conventional vertical milling machines at 400×200mm — high-volume slot milling, face milling, and profile work.

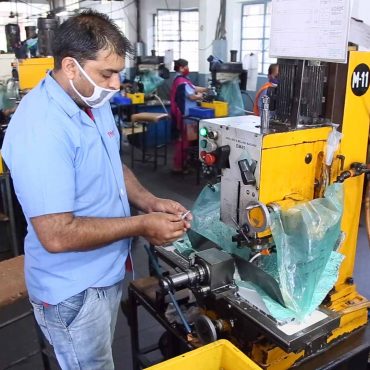

Precision Drilling
21 precision drilling machines up to 13mm diameter — covering fine-diameter and standard-diameter hole-making at production scale.
CNC Drilling
3 CNC drilling machines for complex multi-hole patterns, positional accuracy, and reduced setup times on repeat components.
Complete Milling & Drilling Machine Capacity
62 machines across 5 distinct types — from CNC vertical milling centres at 500×400mm table to precision drilling at 8mm and 13mm diameter, with dedicated CNC drilling capability for complex hole-pattern work.
| Machine Type | Capacity / Range | Quantity |
|---|---|---|
| CNC Vertical Milling | 500 × 400 mm Table | 3 |
| Precision Drilling Machine | Up to 8 mm Diameter | 7 |
| Precision Drilling Machine | Up to 13 mm Diameter | 14 |
| Vertical Milling Machine | 400 × 200 mm Table | 35 |
| CNC Drilling Machine | Multi-Hole CNC Precision | 3 |
From Drawing to Finished Component
Every component processed in our milling and drilling section follows a structured, quality-verified workflow — ensuring dimensional conformance, positional accuracy, and surface integrity from first-off through batch production.

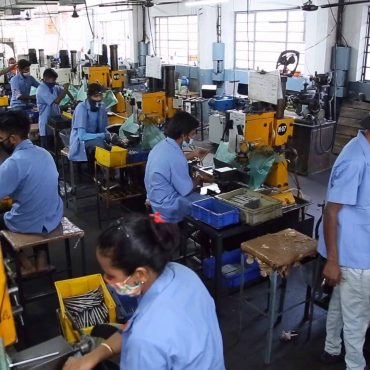

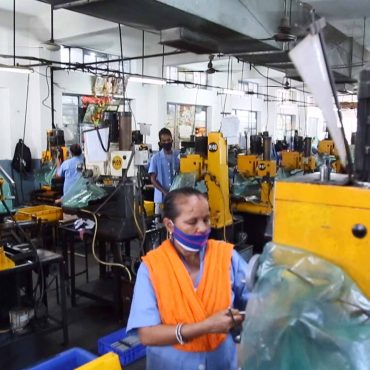

The Advantage of Our Machining Floor
With 35 vertical milling machines, 3 CNC milling centres, 21 precision drilling machines, and 3 CNC drilling machines — our milling and drilling section handles everything from simple face milling to complex multi-hole CNC patterns, entirely in-house at production scale.
CNC Vertical Milling
3 CNC centres at 500×400mm table — multi-axis contouring, face milling, and pocket milling with programmatic repeatability.
35 Vertical Milling Machines
High-volume conventional milling fleet at 400×200mm — built for production-scale slot, face, and profile milling operations.
Precision Drilling to 13mm
21 precision drilling machines at 8mm and 13mm diameter — covering fine and standard drill sizes for automotive component hole-making.
CNC Drilling Accuracy
3 CNC drilling machines for complex hole patterns — precise positional accuracy, reduced setup time, and consistent hole geometry.
Volume Production Ready
62 machines running continuously — purpose-built capacity to meet automotive OEM production schedules without bottlenecks.
Integrated with Full Process Chain
Milling and drilling output feeds directly into heat treatment, grinding, plating, and quality — complete single-vendor continuity.
Milling & Drilling Capabilities
Other Sections in Our Manufacturing Facility
Need Precision Milling or Drilling?
Our Machining Floor is Ready.
Share your drawing or component specification — our engineering team responds with a process route and quote within 24 hours.
Request a Milling & Drilling Quote
Share your component drawing or specification — our machining team responds within 24 hours with a process route and quote. Drawings, samples, or initial specifications are all welcome.
