Quality Control
Section
32 precision instruments spanning automatic inspection machines, optical microscopes, profile projectors, contour measuring, roundness testing, and hardness verification — ensuring every component meets drawing specification before despatch since 1973.
Precision Verification at Every Stage of Production
The Quality Section at Pivot Fabrique is dedicated to ensuring that every component meets specified standards and customer requirements — monitoring and verifying raw materials, in-process production, and finished parts. With 32 precision instruments including Mitutoyo Japan hardness and roundness testers, automatic inspection machines, optical microscopes, and contour measuring equipment, our quality team maintains dimensional conformance and surface integrity across every batch.
Automatic Inspection
10 automatic inspection machines for high-speed, consistent dimensional verification at production volumes.
Optical Measurement
6 optical measuring microscopes and 4 profile projectors for non-contact form, angle, and geometry measurement.
Hardness & Roundness
Mitutoyo Japan micro hardness tester and roundness tester for post-heat treatment and machining verification.
Surface & Contour
Surface roughness tester and contour measuring machine for complete surface geometry and finish verification.
Complete Quality Section Instrument Capacity
32 precision instruments across 10 inspection categories — from automatic inspection machines and optical microscopes to Mitutoyo Japan hardness testers, roundness testers, contour measuring machines, and electronic air gauges.
| Instrument / Equipment | Measurement Function | Quantity |
|---|---|---|
| Automatic Inspection Machine | High-speed automated dimensional verification | 10 |
| Optical Measuring Microscope | Non-contact form, geometry & surface inspection | 6 |
| Profile Projector | Magnified 2D profile comparison to drawing overlay | 4 |
| Electronic Air Gauge | High-precision bore and diameter measurement | 4 |
| Plating Thickness Measuring Equipment | XRF / magnetic coating thickness verification | 2 |
| Digital Height Gauge | Precision height and step measurement | 2 |
| Contour Measuring Machine | Surface profile and contour geometry verification | 1 |

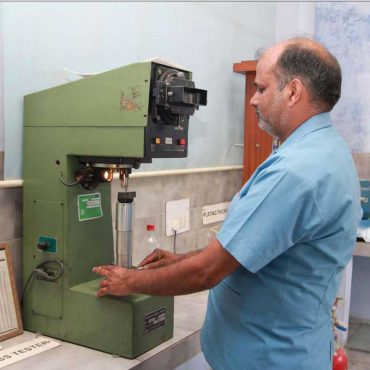

| Micro Hardness Tester — Mitutoyo Japan | Vickers / Knoop micro hardness measurement | 1 |

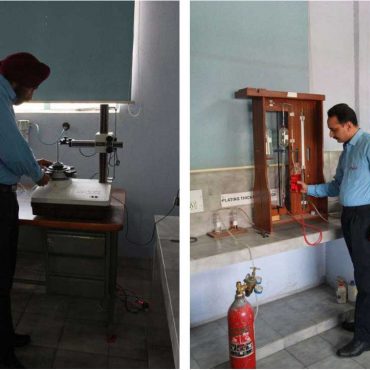

| Roundness Tester — Mitutoyo Japan | Roundness, cylindricity & run-out measurement | 1 |
| Surface Roughness Tester | Ra / Rz surface finish measurement | 1 |
From Incoming Material to Certified Despatch
Quality verification is embedded at every stage of our production chain — from incoming raw material through in-process checks to final inspection and despatch clearance — ensuring full traceability on every batch.
The Advantage of Our Precision QC Floor
With 10 automatic inspection machines, 6 optical microscopes, Mitutoyo Japan roundness and hardness testers, and a contour measuring machine — our quality section provides end-to-end measurement capability for every product family, entirely in-house.
10 Automatic Inspection Machines
High-speed 100% dimensional sorting — ensuring every component despatched meets drawing specification without exception.
6 Optical Microscopes
Non-contact optical measurement for fine geometry, thread form, and surface detail verification without part contact or distortion risk.
Profile Projectors & Air Gauges
4 profile projectors and 4 electronic air gauges for rapid, repeatable profile and bore diameter verification at production throughput.
Mitutoyo Japan Instruments
Roundness tester and micro hardness tester from Mitutoyo Japan — the benchmark for precision dimensional and metallurgical verification.
Contour & Surface Measurement
Contour measuring machine and surface roughness tester verify complete surface geometry and Ra/Rz finish against drawing requirements.
Full Traceability & Records
Every batch released with dimensional records, material certs, and inspection sign-off — meeting the most demanding OEM and export audit requirements.
Inside Our Quality Lab
A disciplined, instrument-led quality floor — built to verify every dimension, surface, and coating before a single component leaves our facility.
Quality Section Capabilities
Other Sections in Our Manufacturing Facility
Need Precision Components with Documented Quality?
We Inspect Everything Before Despatch.
Every batch despatched with full dimensional records, material certification, and inspection sign-off — for the most demanding OEM and export requirements.
